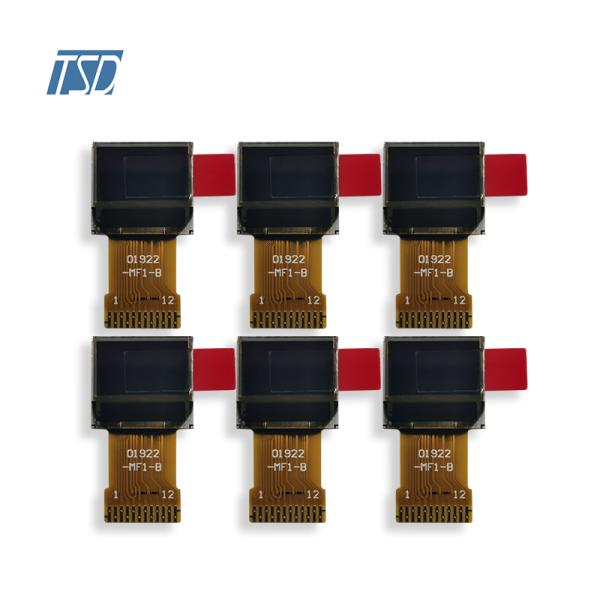

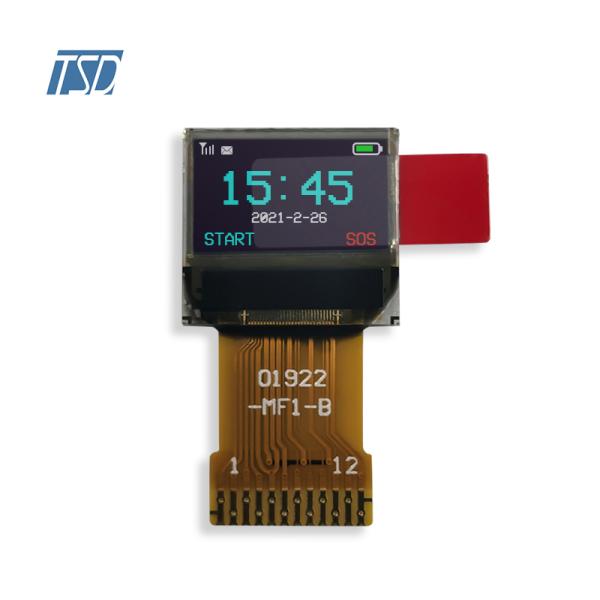

Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture

Place of Origin : Guangdong, China

Model Number : TSO7240-A01

Brand Name : TSD

Packaging Details : Packed in anti-static bag each, a certain quantity in one carton.

Supply Ability : 150000 Piece/Pieces per Month

MOQ : Negotiable

Price : Negotiable

Type : 0.42 inch oled display module

Display Size : 0.42 inch

Dot Matrix : 72(W)*40(H)

Dot Size : 0.108(W)*0.11(H) mm2

Dot Pitch : 0.128(W)*0.13(H) mm2

Aperture Rate : 71%

Active Area : 9.196 (W)*5.18 (H) mm2

Panel Size : 12(W)*11 (H) *1.05(T) mm3

Module Size : 12(W)*19.9(H) *1.28(T) mm3

Diagonal A/A Size : 0.42 inch

Module Weight : 0.37±10% gram

Port : Shenzhen

Contact Now

Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini small 0.42 inch 72x40 I2C 12 pins SH1106 oled display module screen panel
Type
0.42 inch monochrome oled display module
Display Size
0.42 inch
Place of Origin
China

Guangdong
Model Number
TSO7240-A01
Brand Name
TSD
Dot Matrix
72(W)×40(H)
Dot Size
0.108(W)×0.11(H) mm2
Dot Pitch
0.128(W)×0.13(H) mm2
Aperture Rate
71%
Active Area
9.196 (W)×5.18 (H) mm2
Panel Size
12(W)×11 (H) ×1.05(T) mm3
Module Size
12(W)×19.9(H) ×1.28(T) mm3
Diagonal A/A Size
0.42 inch
Module Weight
0.37±10% gram
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture

Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
About us
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture

Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Application
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...

Certifications
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Customer Photos
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
Packing & Delivery
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Mini Sh1106 Oled Display 0.42 Inch 72x40 I2C 12 Pins 71% Aperture
